Sava

Product features

Elegant

Standard Color

Alternative Colors min 10 mt.

Compact Connection 4x1/2

C. Ventil Connection 6x1/2

Working Pressure

Smooth Front Face

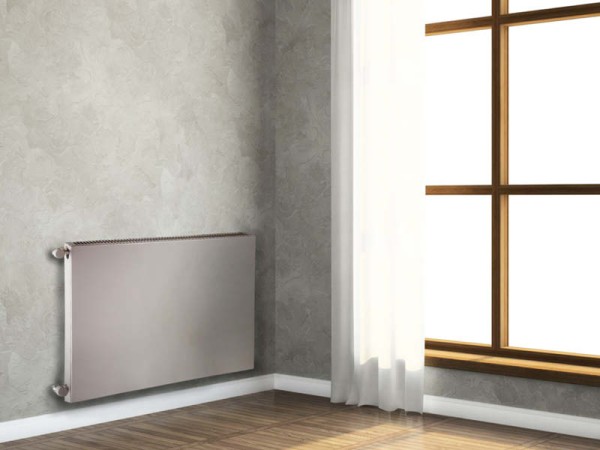

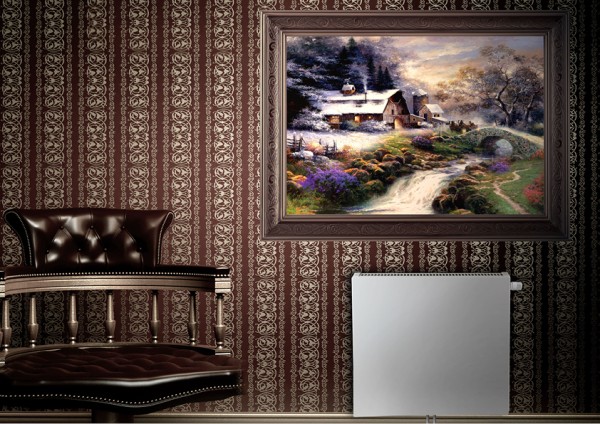

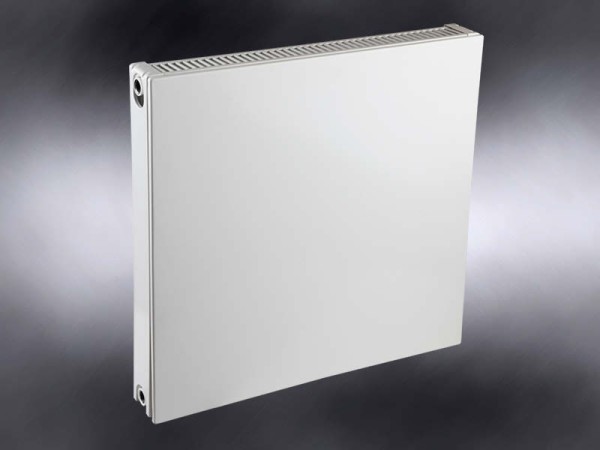

The most distinctive feature of Sava radiators is their flat surface. Due to its smooth front face, Sava radiators fit perfectly into an elegant atmosphere.

Special Choice Of Colours

Sava comes with a special choice of colours for the heating needs of modern buildings.

High Quality Material

They are made of high quality material and are durable, easy–to-clean and scratch resistant.

Technical Specifications

Radiator Types

Standard	:	TS EN 442-2
Material Structure	:	Cold Rolled Steel
Surface Treatment	:	The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200°C).

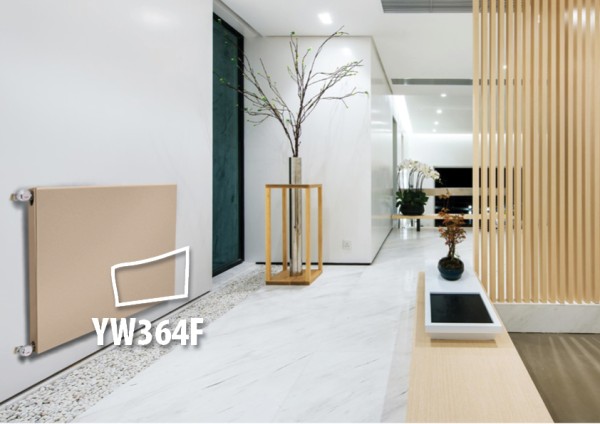

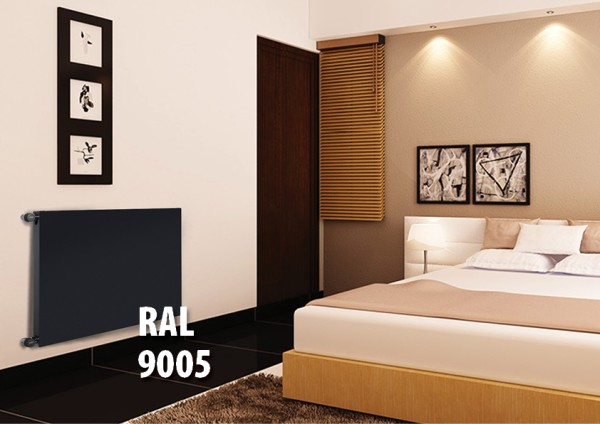

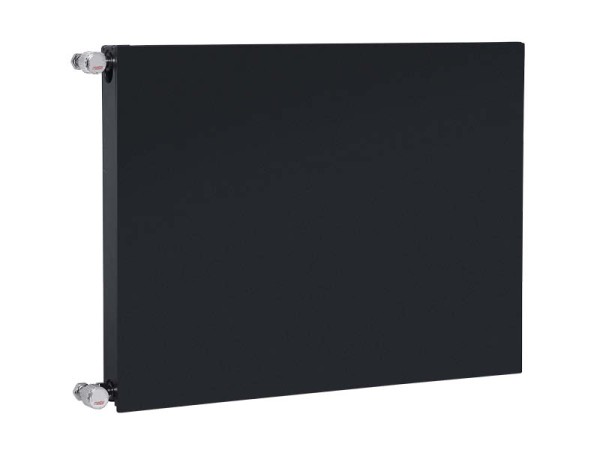

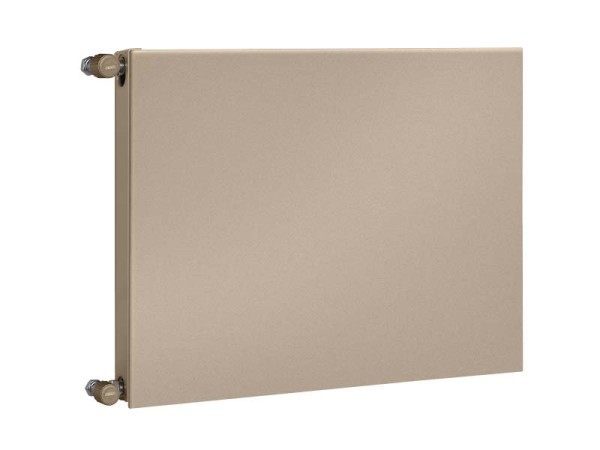

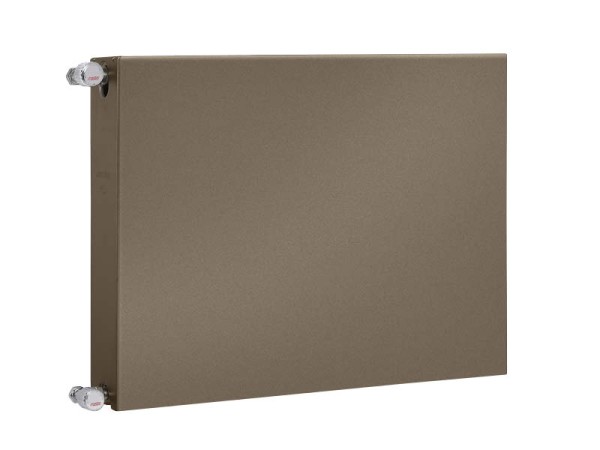

Color	:	RAL 9016 (Standard color) Alternative Colors:RAL 9016 White Matte Beige Matte (YW364F), L. Brown Matte (YW364F) ve Black Matte (RAL 9005) The minimum order quantity is 10 mt. or 20 for alternative color products. The minimum order quantity is 350 mt. for the other colors than.
Working Pressure	:	9 Bar (10 bar can be produced as requested)
Quality Standard	:	TS EN ISO 9001 2015
Heights	:	300-400-500-600-900 mm
Lengths	:	400 - 2200 mm
Water Temperature	:	0°C – 120°C
PH Value	:	Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be.
Montage	:	=<1400mm : 2 fixing brackets >1400 mm : 3 fixing brackets
Guarantee	:	10 Years
Brand	:	MASTAŞ

Connection and Mounting

Assembly

INSTALLATION DIMENSIONS

Radiator Length L (mm)	P - PK - PP - PKP - PKKP - PKKPKP
Radiator Length L (mm)	A (mm)	B (mm)	C (mm)	D (mm)
400	102	196	-	-
500	136	228	-	-
600	169	262	-	-
700	169	362	-	-
800	169	462	-	-
900	169	562	-	-
1000	169	662	-	-
1100	169	762	-	-
1200	169	862	-	-
1300	169	962	-	-
1400	169	1062	-	-
1500	169	-	581	-
1600	169	-	631	-
1700	169	-	681	-
1800	169	-	731	-
1900	169	-	781	-
2000	169	-	831	-
2100	169	-	881	-
2200	169	-	931	-
2300	169	-	981	-
2400	169	-	-	687
2500	169	-	-	720
2600	169	-	-	754
2700	169	-	-	787
2800	169	-	-	820
2900	169	-	-	854
3000	169	-	-	887

Radiator Height H (mm)	PK
Radiator Height H (mm)	E (mm)	F (mm)	G (mm)
300	120	90	90
400	120	160	120
500	120	200	180
600	220	190	190
900	520	190	190

Radiator Height H (mm)	PKKP - PKP - PP
Radiator Height H (mm)	E (mm)	F (mm)	G (mm)
300	120	90	90
400	220	90	90
500	220	140	140
600	220	190	190
900	520	190	190

Quantity of Mounting Brackets
Panel Length L (mm)	Piece
L = 400 - 500 - 600 -... - 1400	4
L = 1500 - 1600 - 1700 -.. - 2300	6
L = 2400 - 2500 - 2600 -... - 3000	8

Heat Output

Model

Type

Height (H)

Dimensions (mm)

Weight Kg/m

Water Volume Lt/m

Heat Power

Axis Distance (h)

Depth

Length (min-max (L)

T= 60 °C

90-70 / 20°C

T= 50 °C

75-65 / 20°C

kcal/h

Watt

kcal/h

Watt

SAVA*

10 P

300

400

500

600

900

245

345

445

545

845

400-3000

5.6

8.1

10.6

12.0

17.4

1.8

2.1

2.4

2.7

4.9

364

460

553

641

895

423

535

643

746

1041

286

362

435

505

703

333

421

506

587

816

SAVA*

11 PK

300

400

500

600

900

245

345

445

545

845

400-3000

8.6

11.0

13.6

15.9

24.0

1.8

2.1

2.4

2.7

4.9

531

686

837

985

1412

616

798

974

1145

1642

419

515

660

776

1113

487

629

767

903

1294

SAVA*

20 PP

300

400

500

600

900

245

345

445

545

845

400-3000

10.6

16.2

20.6

23.7

34.8

3.6

4.2

4.8

5.4

9.8

592

750

899

1045

1457

689

872

1046

1215

1694

466

590

708

822

1137

542

686

823

956

1322

SAVA*

21 PKP

300

400

500

600

900

245

345

445

545

845

400-3000

13.6

16.3

23.8

27.8

41.3

3.6

4.2

4.8

5.4

9.8

782

1001

1200

1393

1937

921

1164

1396

1820

2253

623

788

944

1095

1524

724

918

1098

1274

1773

SAVA*

22 PKKP

300

400

500

600

900

245

345

445

545

845

102

400-3000

16.5

21.3

26.9

31.6

47.7

3.6

4.2

4.8

5.4

9.8

1034

1306

1570

1824

2542

1202

1521

1826

2121

2956

813

1026

1235

1434

1999

945

1195

1436

1668

2325

SAVA*

33 PKKPKP

300

400

500

600

900

245

345

445

545

845

160

400-3000

25.2

32.7

39.8

46.7

70.6

5.4

6.3

7.2

8.1

14.7

1433

1807

2163

2505

3472

1667

2102

2515

2913

4036

1127

1421

1701

1969

2730

1311

1653

1978

2291

3175

* Weights may vary within a range of +15% in Sava, Sahra models..

Guarantee

Sava Decorative Radiators | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening
