Linea Decorative Radiators
Linea
Striking Style
Grabbing the attention with its distinct look, the radiator offers a striking alternative for interior designs.
Center of Attention

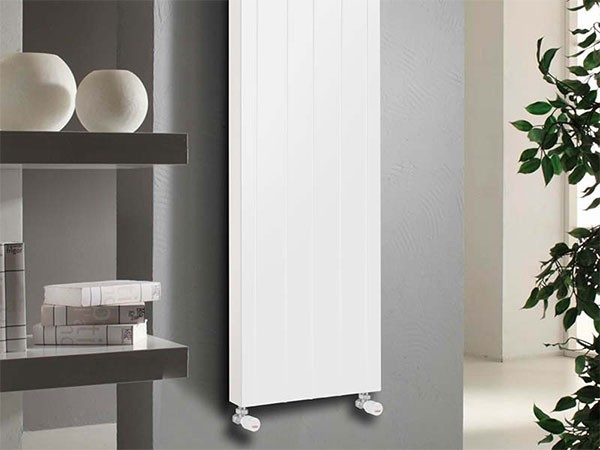

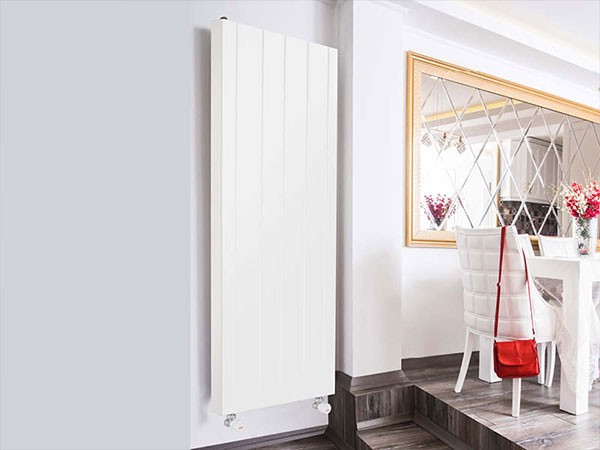

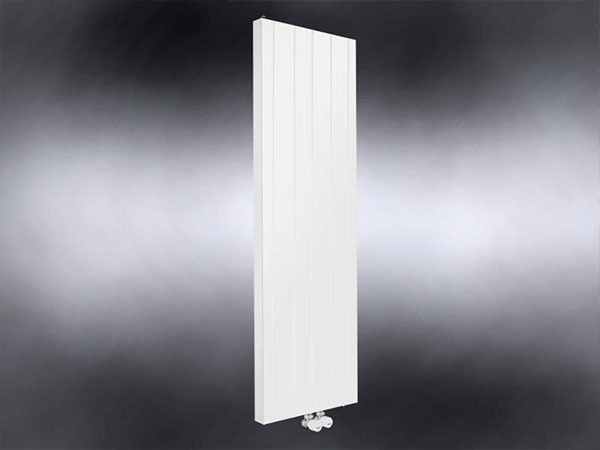

Eye-catching with its fluted design, Linea is set to become the center of attention in any space.
|
Standard |
: |
TS EN 442 |
|
Material Structure |
: |
Cold Rolled Steel |
|
Surface Treatment |
: |
The radiator is degreased ,phosphated,pasivated and dipped in primer water-Based paint and then coated with electrostatic powder paint (furnaced about 200°C). |
|
Color |
: |
RAL 9016 (Standard color) Alternative Colors: RAL 9016 White Matte, Beige Matte (YW364F), L. Brown Matte (YW364F) ve Black Matte (RAL 9005) The minimum order quantity is 10 mt. or 20 pieces for alternative color products. The minimum order quantity is 350 mt. for the other colors than. |
|
Working Pressure |
: |
9 Bar (10 bar can be produced as requested) |
|
Quality Standard |
: |
TS EN ISO 9001 2015 |
|

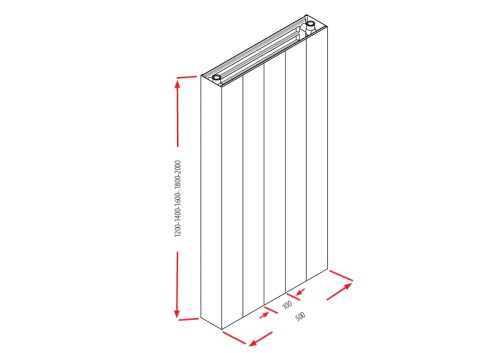

Heights |
: |
1200 - 1400 - 1600 - 1800 - 2000 mm |
|
Width |
: |
500 mm |
|
Water Temperature |
: |
0°C – 120°C |
|
PH Value |
: |
Jeothermal and well water required values; ph: min. 9.5, max. 11,5 hardness: max. 30 ppm. Total alkalinity as CaCO3: 300 -700 ppm , oxygen: 0 (zero) should be. |
|
Montage |
: |
Connection Standard 2x1/2, Connection Central Inlet 4x1/2 |
|
Guarantee |
: |
10 Years (*Vertical panels are not suitable for use in moist areas.) |
|
Brand |
: |
MASTAŞ |
Linea Decorative Radiators
|

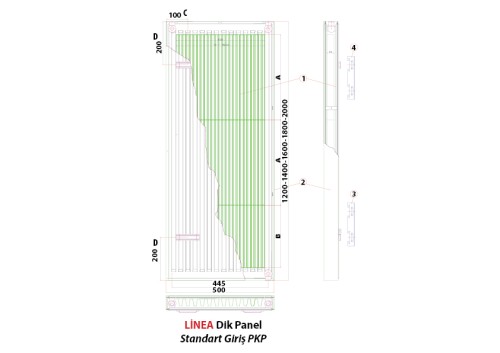

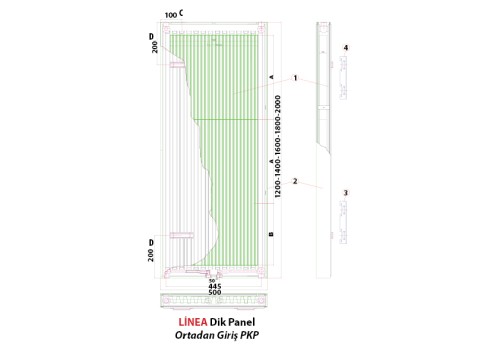

Radiator Height (mm) |
Model PKP |
|
|
C (mm) |
D (mm) |
|
|
1220 |
100 |
200 |
|
1420 |
100 |
200 |
|
1620 |
100 |
200 |
|
1820 |
100 |
200 |
|
2020 |
100 |
200 |
|
Radiator Length (mm) |
|
500 |
|
Color Choice |
|

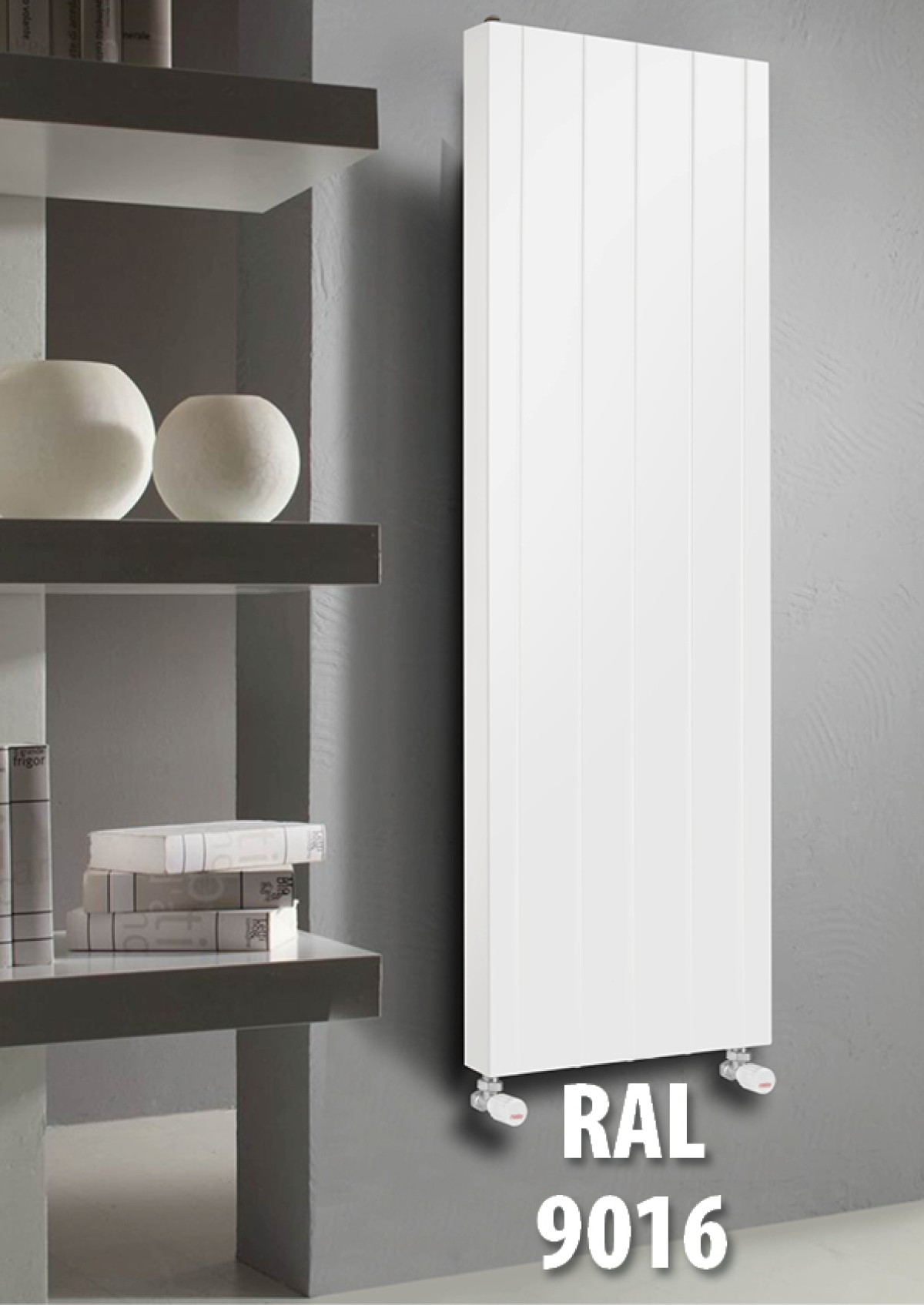

RAL 9016 White/ RAL 9016 White Matte* / RAL 9005 Black Matte* |
* The minimum order quantity is 20 pieces for colour products.

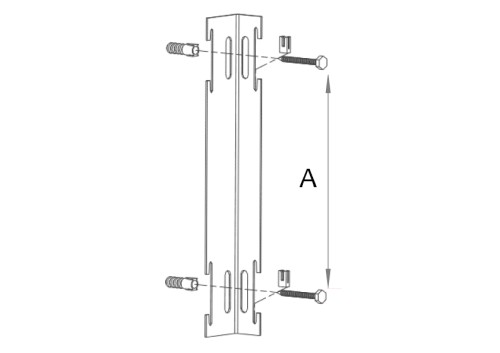

Panel Radiators include wall mounting brackets. (4 pcs) Each bracket is supplied with plastic inserts for noise suppression clip.
|
Model |
Type |
Dimensions (mm) |
Weight (Kg) |
Heat Power |
||||
|
Connection Standard / Central |
Connection Standard / Central |
|||||||
|
Length (W) |
Height (H) |
T= 50 °C 75-65 / 20 °C (Watt) |
T= 60 °C 90-70/ 20 °C (Watt) |
|||||
|
kcal/h |
Watt |
kcal/h |
Watt |
|||||
|
LİNEA* |
21 PKP |
500 |
1200 1400 1600 1800 2000 |
32,89 38,12 43,89 49,12 54,36 |
883 1031 1178 1325 1472 |
1027 1199 1370 1541 1712 |
1107 1291 1476 1660 1845 |
1287 1502 1716 1931 2146 |
*Vertical panels are not suitable for use in moist areas.
Linea Decorative Radiators | Guarantee
1. The Guarantee Period commences upon the delivery of the unit and is 10 years.
2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.
3. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.
4. The product has a service life of 20 years when used according to specifications.
This guarantee given by MASTAŞ A.Ş. does not cover breakdowns other than the normal usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certificate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading, unloading, storage, external physical(impact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to fire and stroke of lightening
Note: Vertical panels are not suitable for use in moist areas.
