Ivigo Professional Convector

Product Features

Daily and Weekly Program

Aluminium X shaped heating element

Energy Consumption Monitoring

Motion Sensor

Open Window Detection

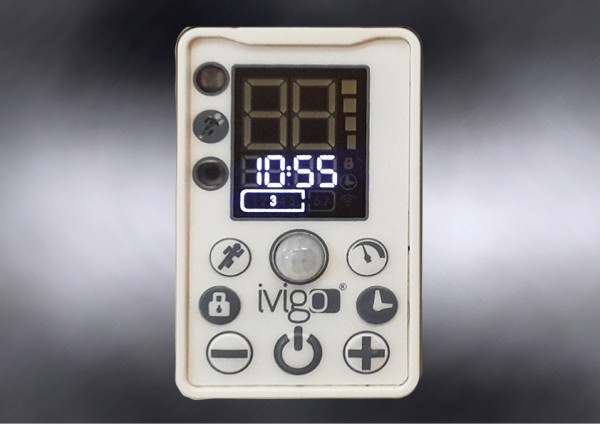

Actual Date and Time

Daily Weekly Programmable and Ecodesign

This smartest member of the convection heater family can be programmed for an entire week, with different settings per day, for weekdays and for weekends.

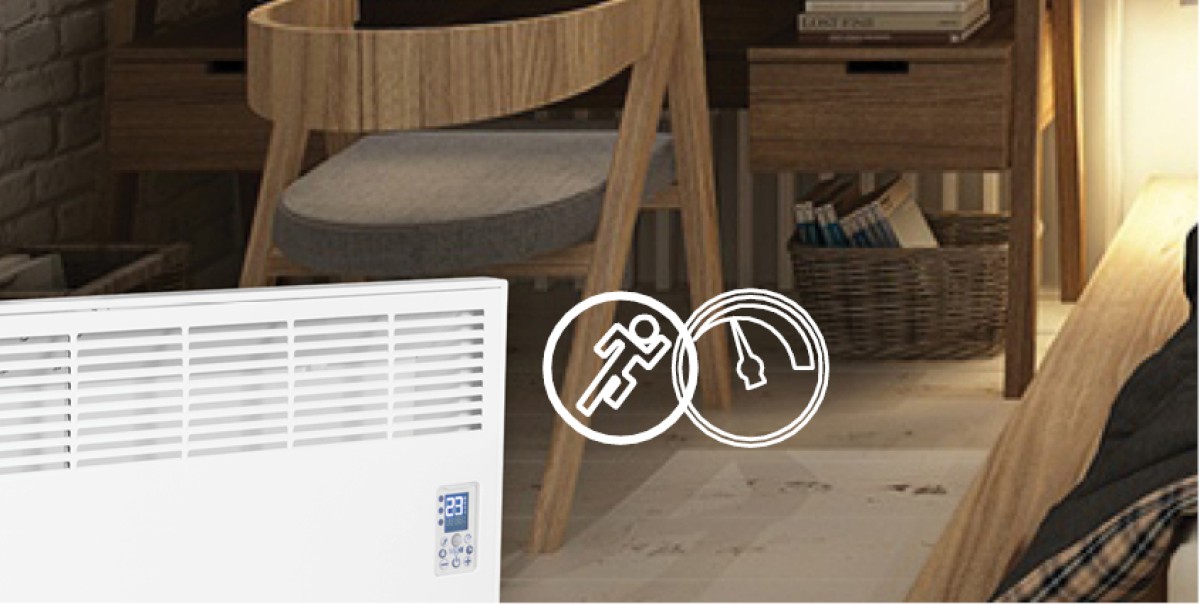

Motion Sensor and Energy Consumption Monitoring

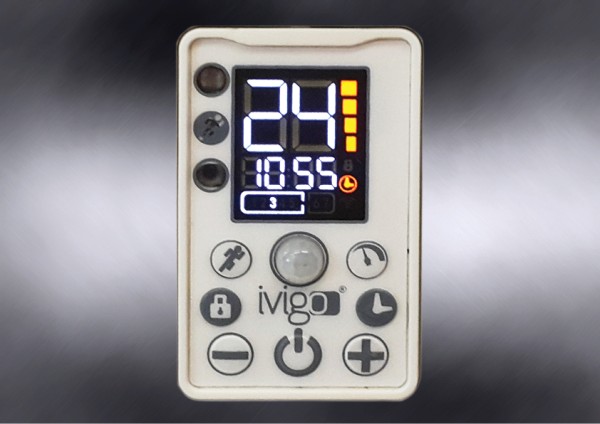

All of these features can be accessed with the simple press of a button located on the display. When the movement sensor is active, the heater automatically turns off when it does not detect movement, and resumes operation when there is movement in the room. The Energy Monitoring button conveniently provides information on the total runtime of the heater coil.

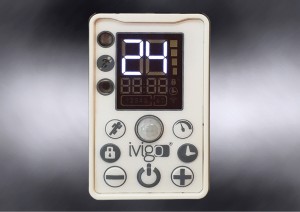

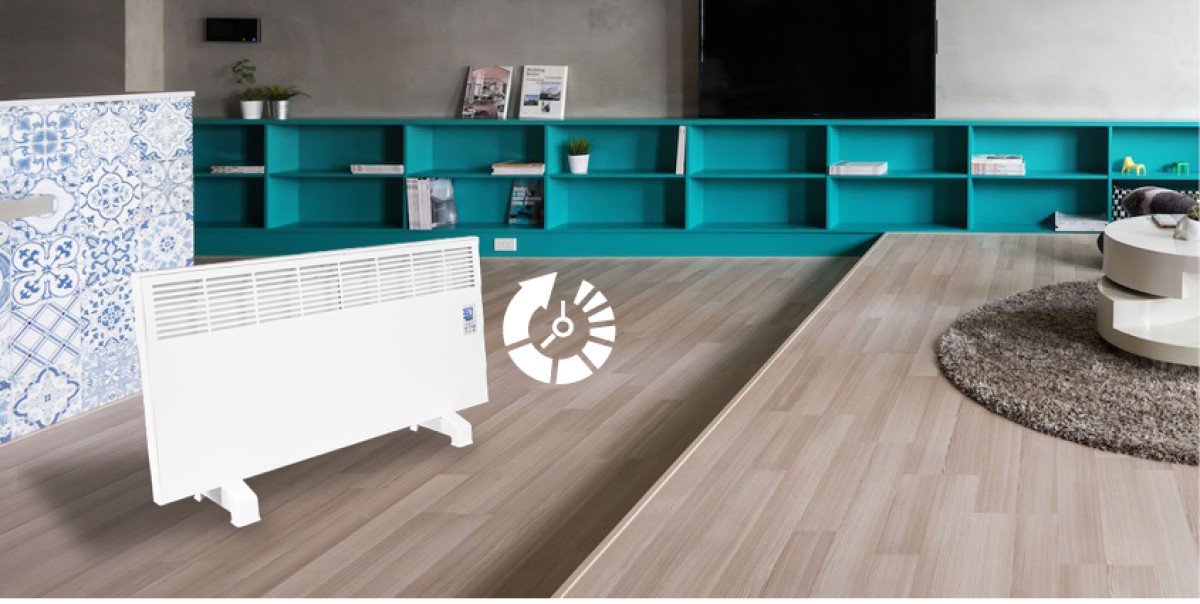

Set the Room Temperature for Each Hour

The Smart Start function does not only turn the device on and off automatically, but also enables you to set the room temperature for a specific time.

Pauses Automatically When Doors or Windows are Left Open

The heater turns off automatically when it detects a sudden drop in temperature.

Technical Specifications

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

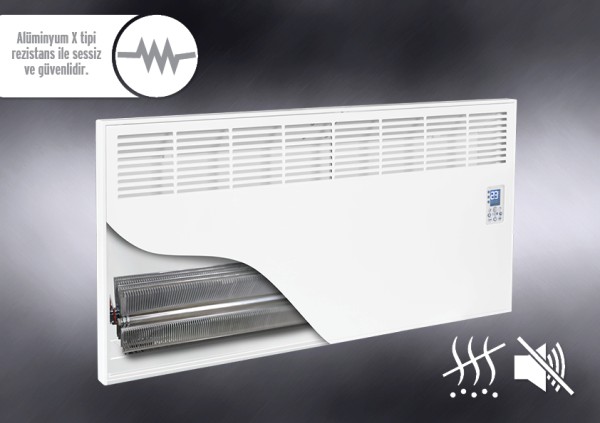

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Standard	:	EN 60335-2-30
Material Structure	:	Cold Rolled Steel Iron body: 0.80 mm, frame: 1.00 mm.
Surface process	:	Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing followed by being painted with water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color	:	RAL9016 (Standart), White
Heating Unite Group	:	Aluminyum X type resistance and convectors
Quality Standard	:	CE, TUV, TS EN ISO 9001:2015
Heights	:	450 mm
Lengths	:	500-700-900 mm
Security	:	The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee	:	3 Years

Professional Panel Convector
Type	EPK 4550P05	EPK 4550P07	EPK 4570P10	EPK 4570P15	EPK 4590P20	EPK 4590P25
Height mm	450	450	450	450	450	450
Length mm	500	500	700	700	900	900
Depth mm	80	80	80	80	80	80
Weight kg	5.3	5.3	7.1	7.2	8.8	9.2
Electrical Power W	460-550	685-815	910-1085	1370-1630	1825-2150	2280-2720
Voltage V	220-240	220-240	220-240	220-240	220-240	220-240
Current A	2,07-2,26	3,11-3,40	4,13-4,52	6,23-6,80	8,3-8,96	10,40-11,34
Frequency Hz	50-60	50-60	50-60	50-60	50-60	50-60
Electronic Room Temperature Control	Standard	Standard	Standard	Standard	Standard	Standard
Energy Saving Module (Programmable)	Standard	Standard	Standard	Standard	Standard	Standard
On/Off Switch	Standard	Standard	Standard	Standard	Standard	Standard
Cord Length m	1.5	1.5	1.5	1.5	1.5	1.5
Protection Type	I	I	I	I	I	I
Thermostat Against Excessive Heat	Standard	Standard	Standard	Standard	Standard	Standard
Rollover protection switch	Standard	Standard	Standard	Standard	Standard	Standard
Mechanical Thermostat Control	-	-	-	-	-	-
Energy Consumption Display	Standard	Standard	Standard	Standard	Standard	Standard
Room Temperature Display	Standard	Standard	Standard	Standard	Standard	Standard
Real Time Clock	Standard	Standard	Standard	Standard	Standard	Standard
Energy Consumption Monitoring	Standard	Standard	Standard	Standard	Standard	Standard
Daily / Weekly Program	Standard	Standard	Standard	Standard	Standard	Standard
Open Window Detection	Standard	Standard	Standard	Standard	Standard	Standard
Motion Sensor	Standard	Standard	Standard	Standard	Standard	Standard
Adaptive Start Feature	Standard	Standard	Standard	Standard	Standard	Standard
Anti-Frost	Standard	Standard	Standard	Standard	Standard	Standard
Plastic Legs	Standard	Standard	Standard	Standard	Standard	Standard
Wall Mounting Kit	Optional	Optional	Optional	Optional	Optional	Optional
Color Choices	White	White	White	White	White	White
Exclusive Keylocker	Optional	Optional	Optional	Optional	Optional	Optional

Basic Electric Panel Convector Heater Model Selection
Model	Recommended Heater Power (watt)	Room Area (m2)

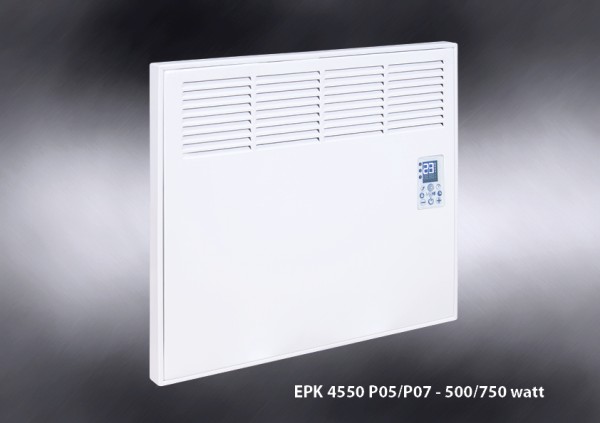

EPK 4550 P05	500	3-6
EPK 4550 P07	750	4-9

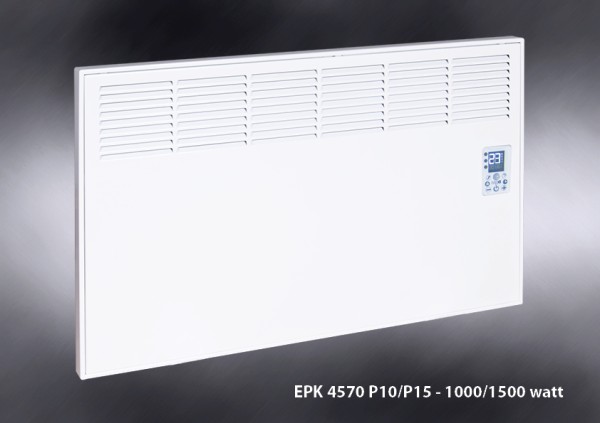

EPK 4570 P10	1000	6-12
EPK 4570 P15	1500	9-17

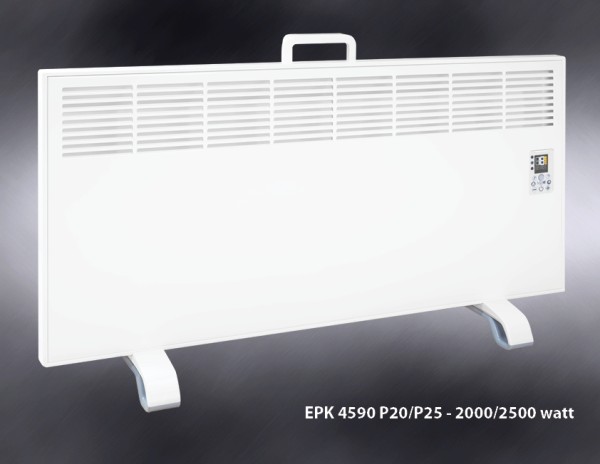

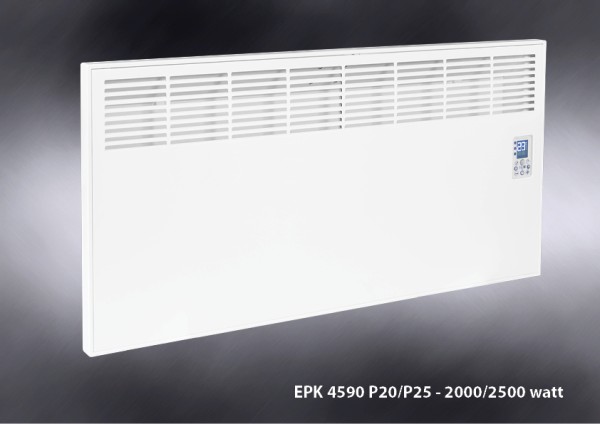

EPK 4590 P20	2000	12-24
EPK 4590 P25	2500	14-28

Guarantee

Professional Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
