Ivigo Manual Electric Heater with Fan

Practical & Strong Heating

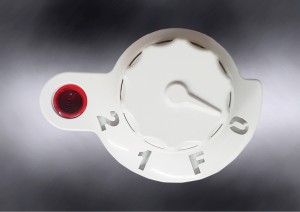

The temperature settings are controlled by the onboard switch for convenient operation, with strong fans bringing the room to the desired temperature rapidly.

Easy to Carry

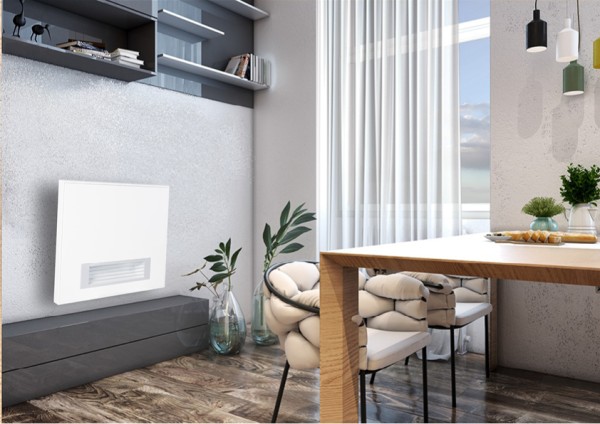

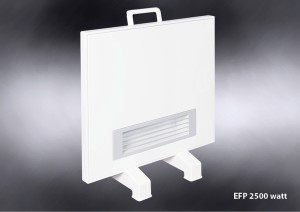

The heater is very mobile thanks to its small dimensions, carry handle and fixed legs, enabling the device to be safely carried to and used in any room. It can also be mounted on the wall using the mounting kit included in the package.

Small Footprint

It has a small footprint despite its considerable heating capacity, and can be mounted on the wall or used free-standing for mobility.

Manual Electric Heater With Fan | Technical Specifications

Type/Model

EFP4550M25

Height mm

450

Length mm

500

Depth mm

98

Weight kg

7

Electrical Power W

2500

Voltage V

220-240

Current A

10.9

Frequency Hz

50-60

Electronic Room Temperature Control

-

Energy Saving Module

-

On / Off Switch

-

Cord Length m

2

Protection Type

I

Protection Against Water Spill (IP)

IP 24

Thermostat Against Excessive Heat

Disponible

Mechanical Thermostat Control

Disponible

Energy Consumption Display

-

Room Temperature Display

-

Fan

Disponible

Sound Level dB

Max. 50

Color Choices

White (B)



Standard : TS EN 60335-2-30
Material Structure : Cold Rolled Steel Iron. Body :0.80 mm, Frame: 1.00 mm.
Surface  process : Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing followed by being painted with water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color : RAL9016 (Standard)
Heating Unite Group : Wire coil heating element and fan
Quality Standard : CE, EN ISO 9001:2008
Height : 450 mm
Length : 500 mm
Security : The product goes to functional test, earth loop continuity check, high voltage breakdown and leak current mesurement tests.
Guarantee : 2 Years



Manuel Heater With Fan Model Selection
Model Recommended Heater Power (watt) Room Area(m²)
EFP 4550 M25 2500 15 - 30



The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Electric Heater With Fan | Guarantee



1. The Guarantee Period commences upon the delivery of the unit and is 2 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:

- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period

- If the maximum repair period is exceeded

- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

TS EN 60335-2-30: 2011 A11: 2012
