Ivigo Manual Convector

Product Features

Easy Control Key

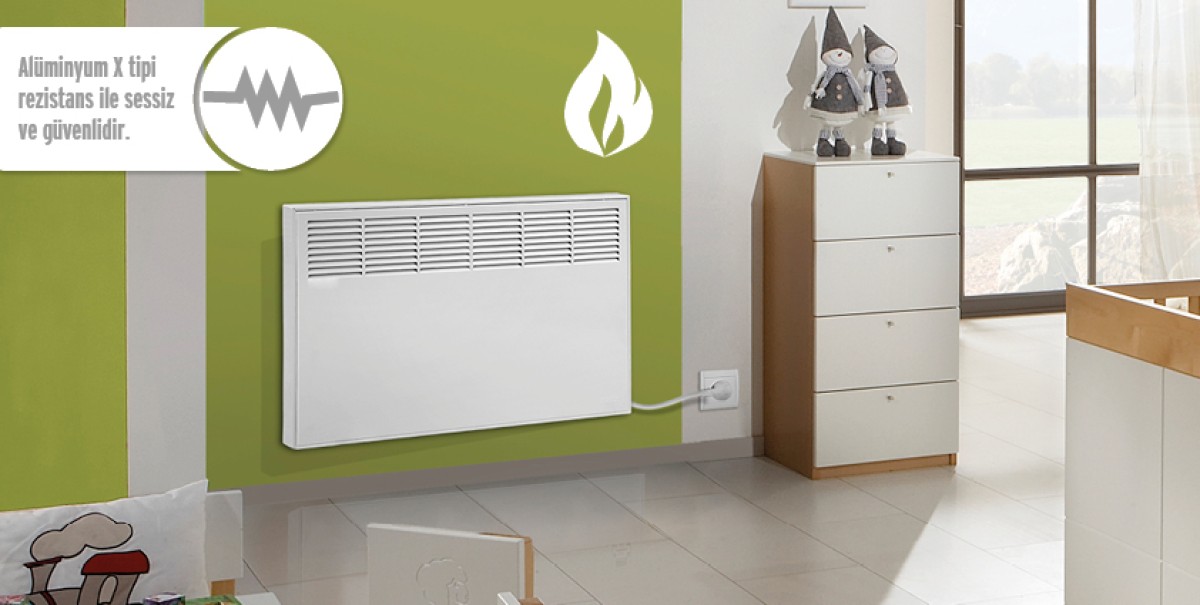

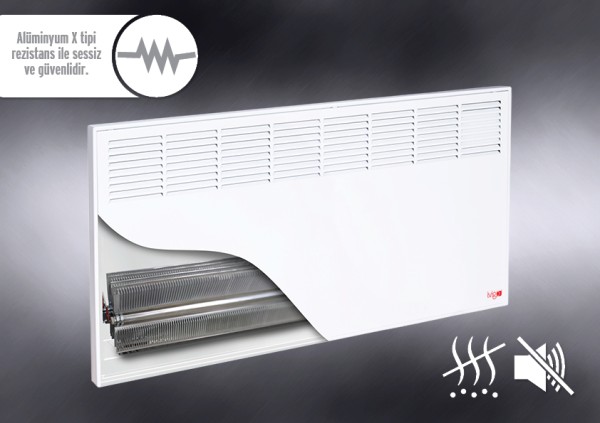

Aluminium X shaped heating element

Low Surface Temperature

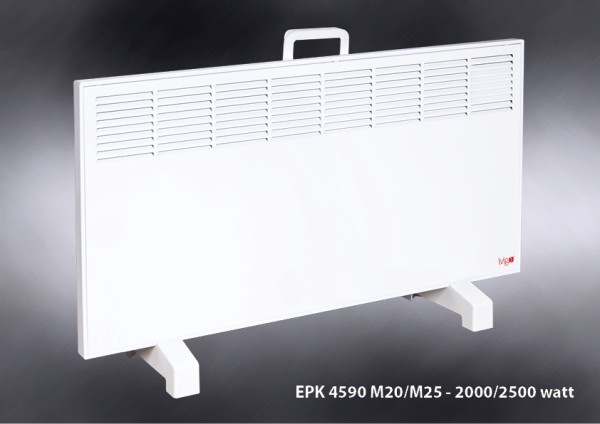

Portable Floor Stand

Wall Mount Kit Included

Doesn’t Burn Dust

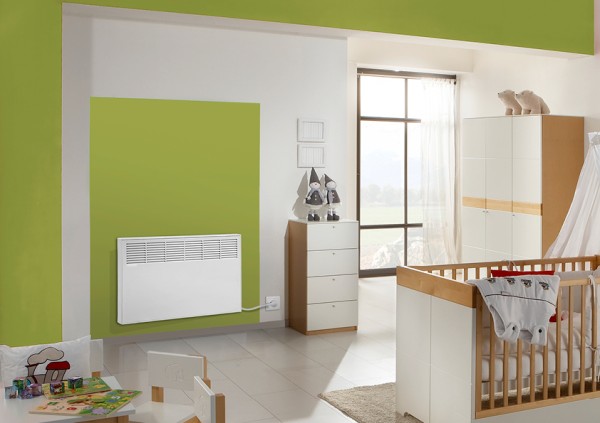

Heats up the Entire Room

The heater heats up the entire room. It can be used safely in children’s and babies’ rooms. Activates and deactivates automatically based on room temperature.

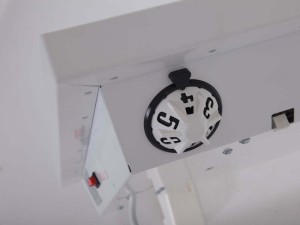

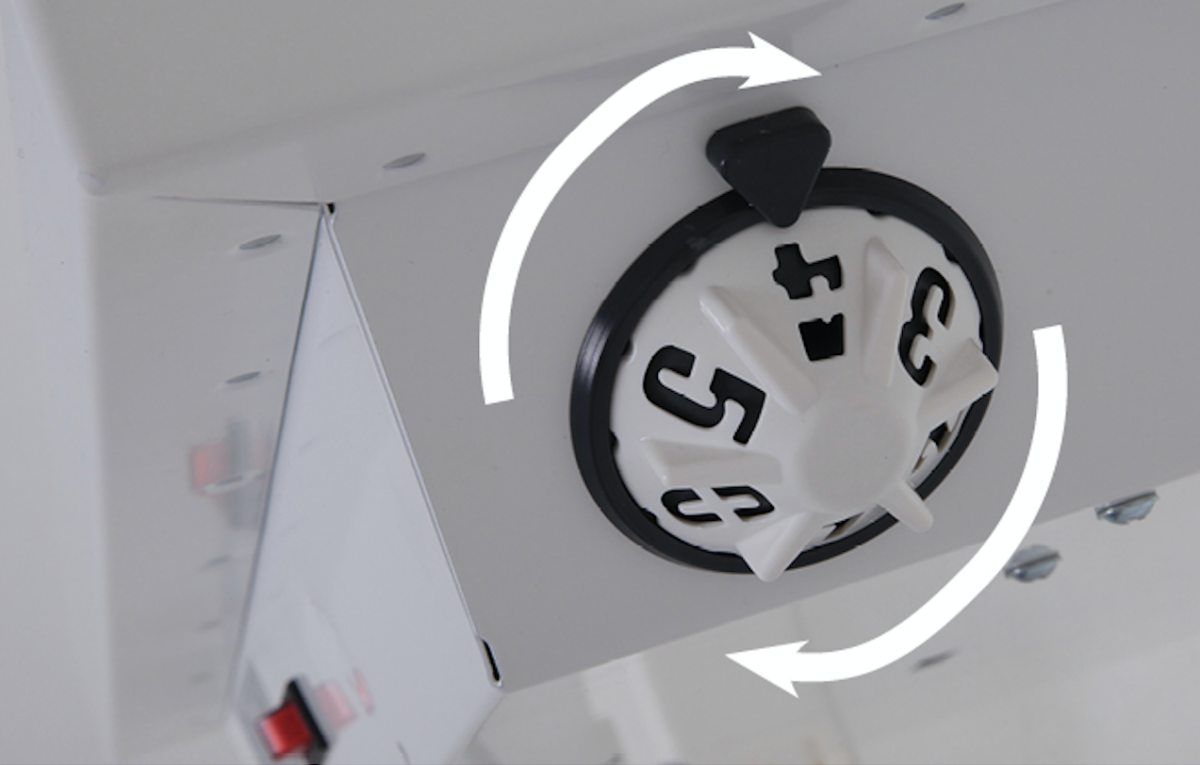

Easy Control

It can be easily switched between five temperature settings.

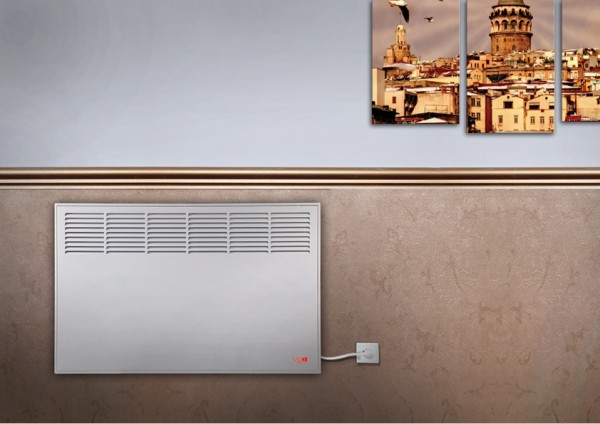

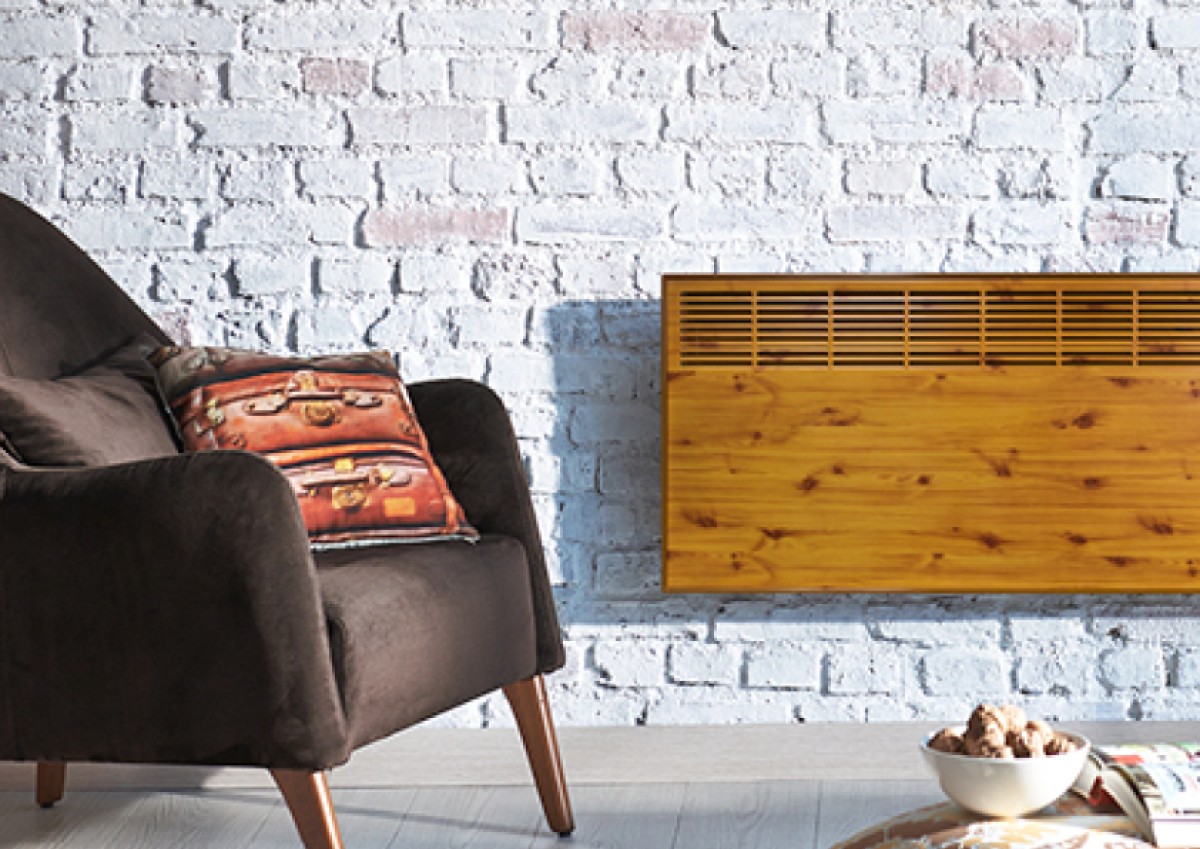

Decorative and Energy Efficient

The heater 20% less energy than continuous-opera- tion heaters, offering energy efficiency and comfort. It easily blends into the room’s decoration thanks to its elegant design and a broad range of color and texture options.

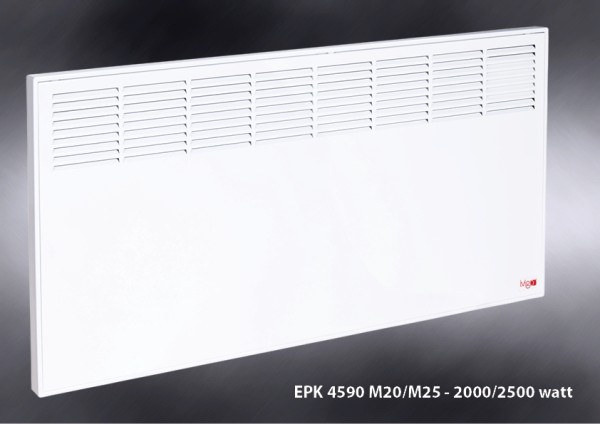

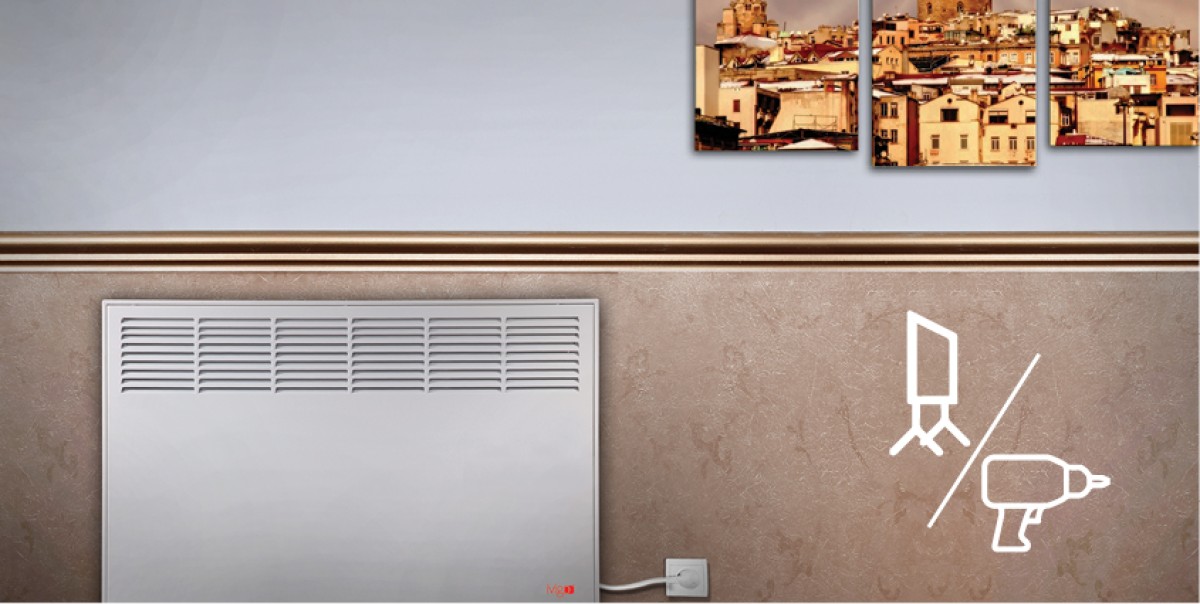

Wall Mount or Floor Stand Option

It can be either used free-standing or mounted to a wall using the set of plastic legs and wall mounts included in the package.

Technical Specifications

Electric Panel Convector Heater Model Selection

The heat requirement depends on factors such as the exterior temperature, room heat isolation, door open/close cycles. The values stated on the above table are for average conditions with an outside temperature of 8-10 degrees therefore when calculating the heater power these factors should be taken into consideration.

Aluminium X shaped heating element and convectors. Tin coating technology is used in our heater cables.Cable thickness: 2000-2500 Watt products; 3x1.50 mm2, 1000-1500 Watt products; 3x1.0 mm2

Manual Panel Convectors
Type	EPK 4550M05	EPK 4550M07	EPK 4570M10	EPK 4570M15	EPK 4590M20	EPK 4590M25
Height mm	450	450	450	450	450	450
Height mm	500	500	700	700	900	900
Depth mm	80	80	80	80	80	80
Weight kg	5.3	5.3	6.9	7.2	9	9.2
Electrical Power W	460-550	685-820	910-1085	1370-1630	1825-2150	2280-2720
Voltage V	220-240	220-240	220-240	220-240	220-240	220-240
Current A	2.17	3.26	4.34	6.52	8.69	10.86
Frequency Hz	50-60	50-60	50-60	50-60	50-60	50-60
Electronic Room Temperature Control	-	-	-	-	-	-
Energy Saving Module (Programmable)	-	-	-	-	-	-
On / Off Switch	Standard	Standard	Standard	Standard	Standard	Standard
Cord Length m	1.5	1.5	1.5	1.5	1.5	1.5
Protection Type	I	I	I	I	I	I
Thermostat Against Excessive Heat	Standard	Standard	Standard	Standard	Standard	Standard
Mechanical Thermostat Control	Standard	Standard	Standard	Standard	Standard	Standard
Rollover Protection	Switch	Switch	Switch	Switch	Switch	Switch
Energy Consumption Display	-	-	-	-	-	-
Room Temperature Display	-	-	-	-	-	-
Plastic Legs	Standard	Standard	Standard	Standard	Standard	Standard
Wall Mounting Kit	Optional	Optional	Optional	Optional	Optional	Optional
Color Choices	White	White	White	White	White, Wood Style	White, Wood Style

Standard	:	TS EN 60335-2-30
Material Structure	:	Cold Rolled Steel Iron. body: 0.80 mm, frame: 1.00 mm.
Surface process	:	Our radiator has been produced in our modern facilities through surface cleaning + phosphatizing followed by being painted with water-based primer and electrostatic powder paint coating, and baked in 200°C without human touch.
Color	:	RAL9016 (Standard), Wood Style
Heating Unite Group	:	Aluminium X shaped heating element and convectors
Quality Standard	:	CE, TS EN ISO 9001:2015
Heights	:	450 mm
Lengths	:	500-700-900 mm
Security	:	Electric panel convector heaters has been adjusted for 220-240 V. Therefore use the convector only with the Alternative Voltage (AC) and sufficient current rated power outlets. Use your electric panel convector heater with grounded plug socket. Our company will not be deemed responsible for the damages caused due to usage without the application of grounding. Do not operate in areas where gasoline, paint or other flammable liquids are used or stored. Do not immerse in liquid or allow liquid into the interior of the appliance, as this could create an electric shock hazard. Do not operate appliance with wet hands always ensure that hands are dry before operating any switch on the product or touching the plug Protect the heating cable of your electric panel convector heater against potential tension possibilities. Do not unplug by pulling on cord.
Guarantee	:	3 Years

Basic Electric Panel Convector Heater Model Selection
Model	Recommended Heater Power (watt)	Room Area (m2)

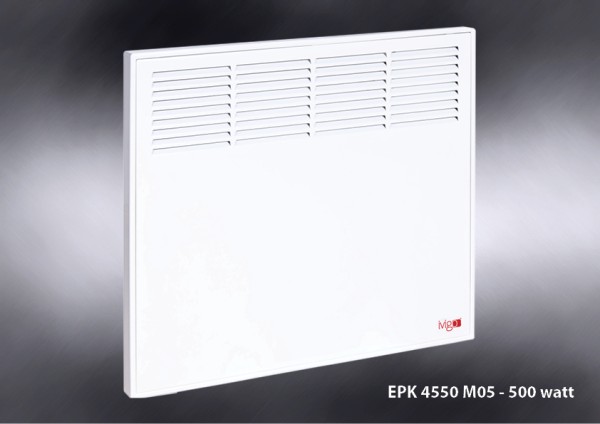

EPK 4550 M05	500	3-6
EPK 4550 M07	750	4-9

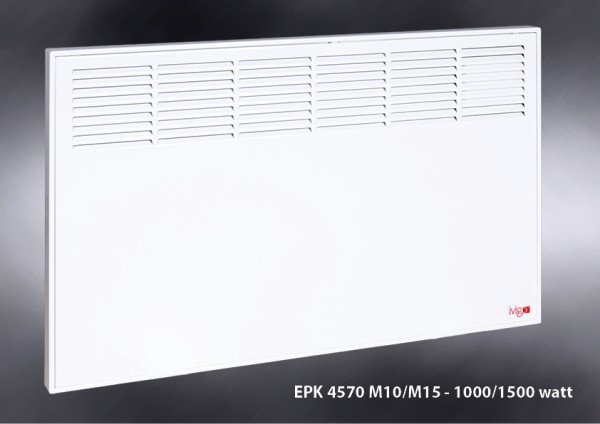

EPK 4570 M10	1000	6-12
EPK 4570 M15	1500	9-17
EPK 4590 M20	2000	12-24
EPK 4590 M25	2500	14-28

Guarantee

Manual Convector | Guarantee

1. The Guarantee Period commences upon the delivery of the unit and is 3 years.

2. The unit is completely within the guarantee coverage of our Company including all the parts thereof.

3. If the unit breaks down within the guarantee period thereof due to material or labor deficiency the repair will be made without any cost requirements under the title of labor cost, replaced part cost or any other title.

4. The customer may request the replacement of the unit, refunding, reduction in price pro rata to the defect under following conditions even if the consumer has used the repair right thereof:
- If the same defect repeats twice within one year as from the delivery of the unit to the client within the predetermined guarantee period or more than four breakdowns occur due to different reasons or if the total amount of the breakdowns due to different reason exceed 6 times causing the prevention of the usage of the unit continuously within the predetermined guarantee period,
- If the maximum repair period is exceeded,
- If it is determined by the service station or to the seller, dealer, agent, representative, importer or to the producer/manufacturer thereof if a service station does not exist, with a report that the repair of the unit is not possible.

5. Breakdowns due to usage other than the ways specified in usage manual of the unit is out of guarantee coverage.

EN 60335-2-30: 2011 A11: 2012
